3.5.2 Exporting to Non DP File Formats

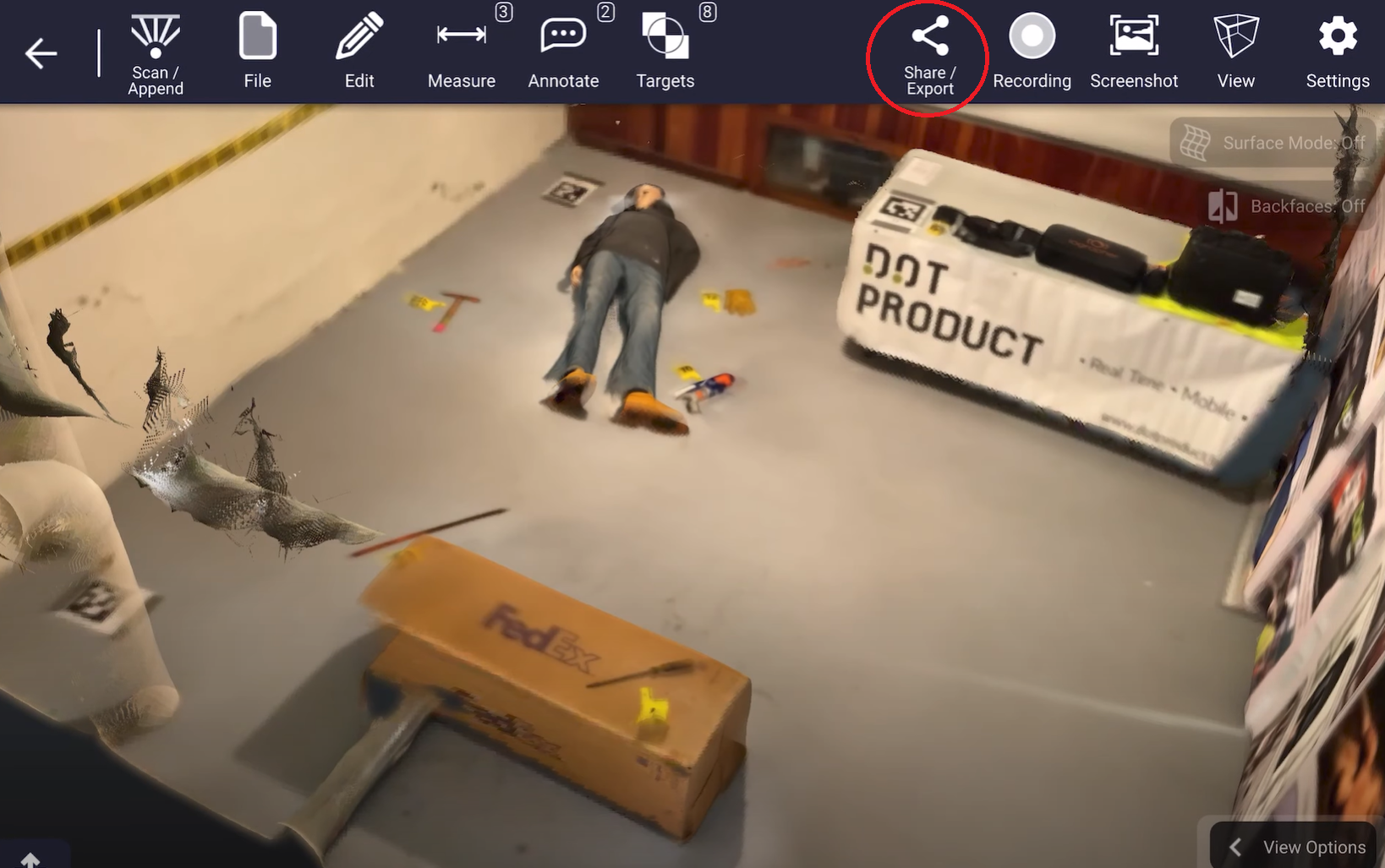

To export your scan to a non-DP file format, go to "Share/Export" and select "As Other File". It is recommended that you first save your scene to the DP file format.

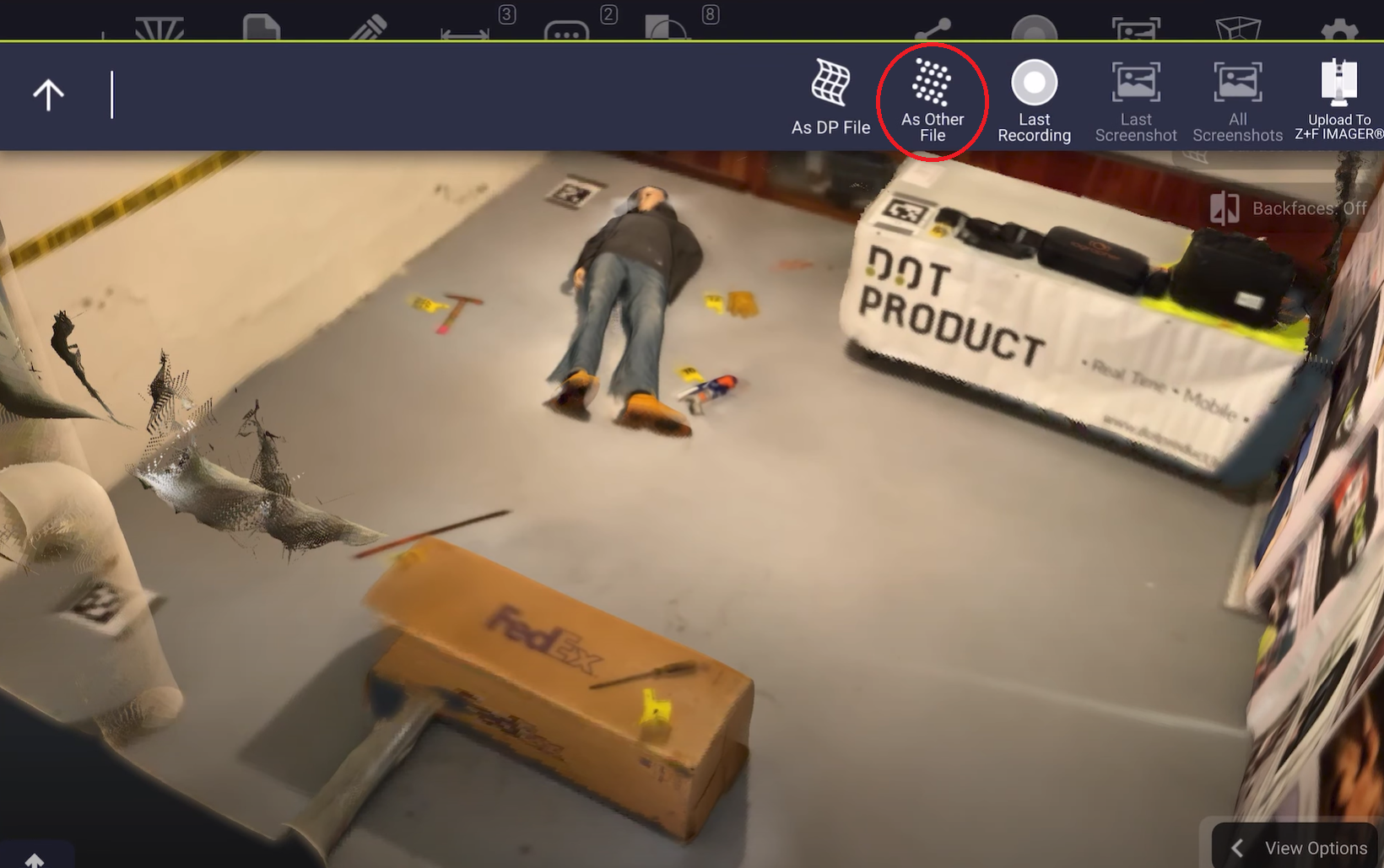

In the "As Other File" menu, you will see all of the file format options you can export your data as. Select the desired format and press "OKAY".
Next, finalize your output transform options and press "EXPORT SCENE".

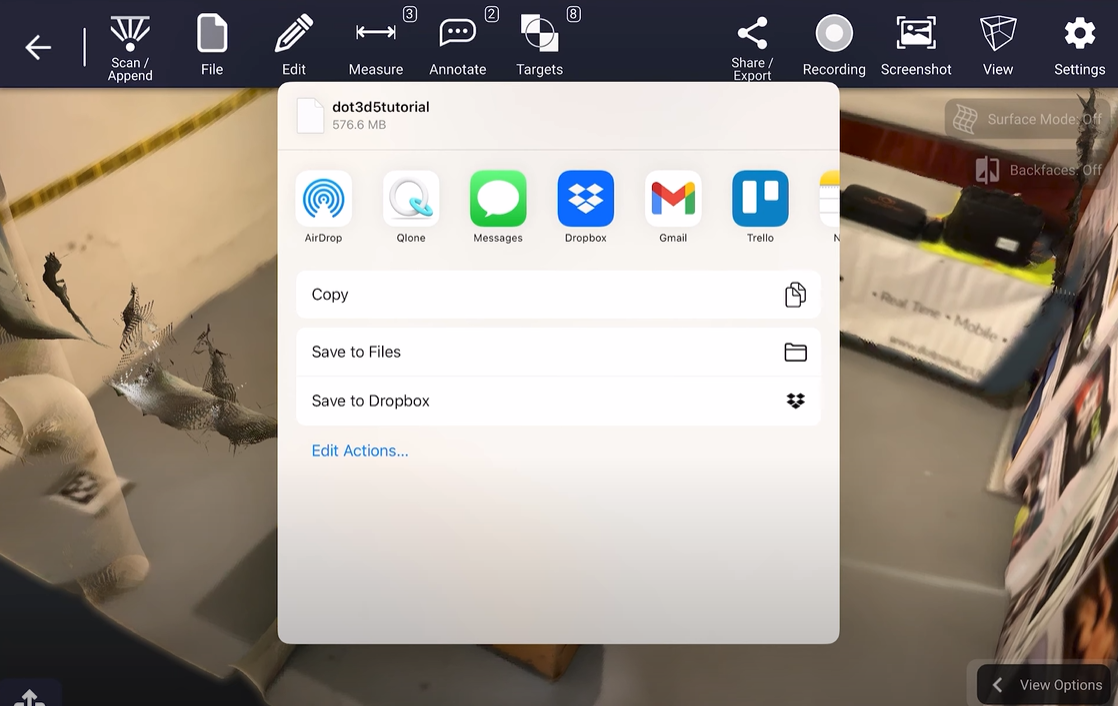

You will then see a window allowing you to choose where to save your file. Select your desired location to complete the export.
