How to import Dot3D scan data to My3D.Cloud

How to import Dot3D scan data to My3D.Cloud

My3D.Cloud can be used to store and share 3D scan data. Dot3D data can be uploaded to it for easy collaboration and sharing.

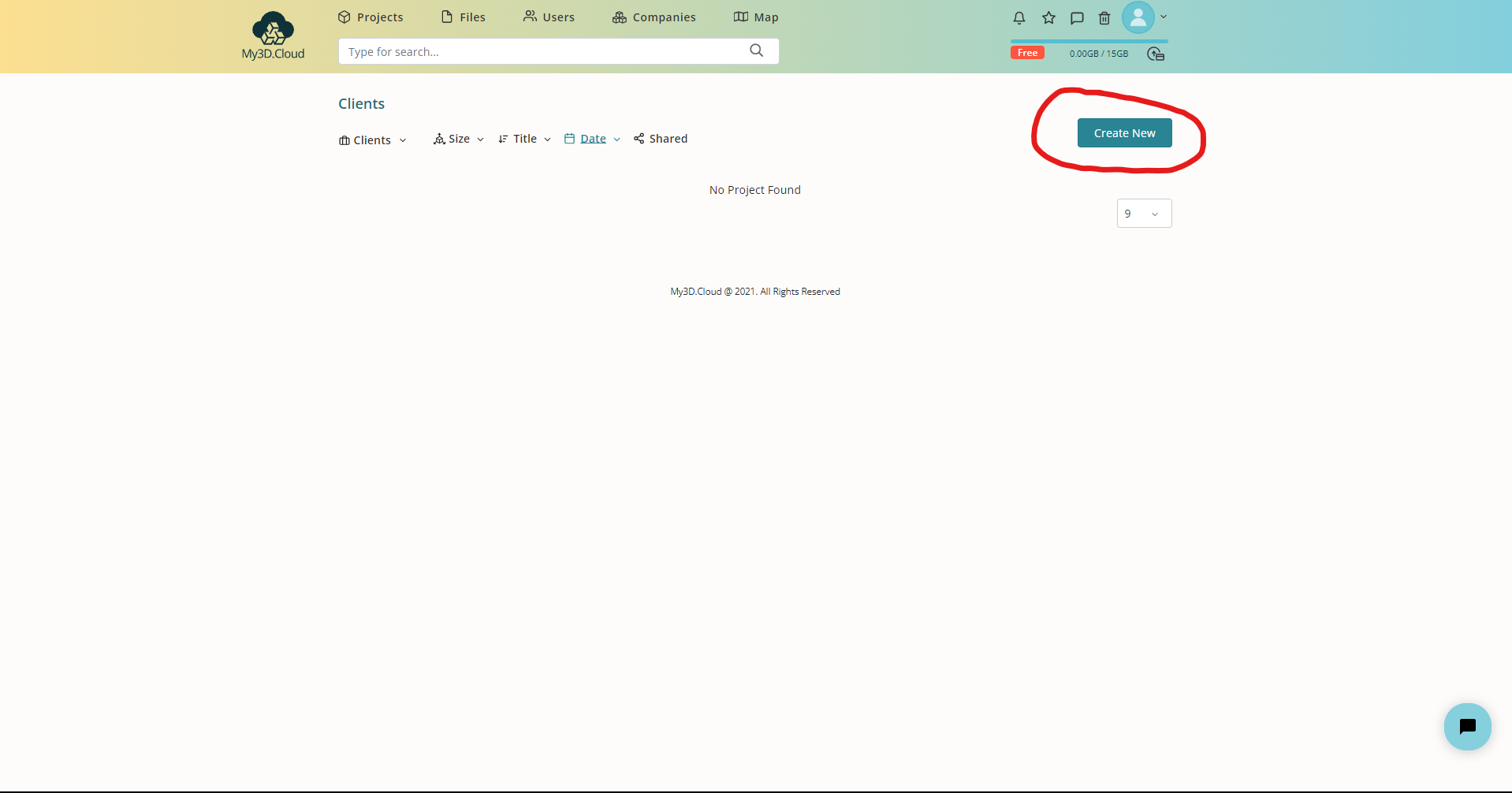

Step 1: Hit "Create New"

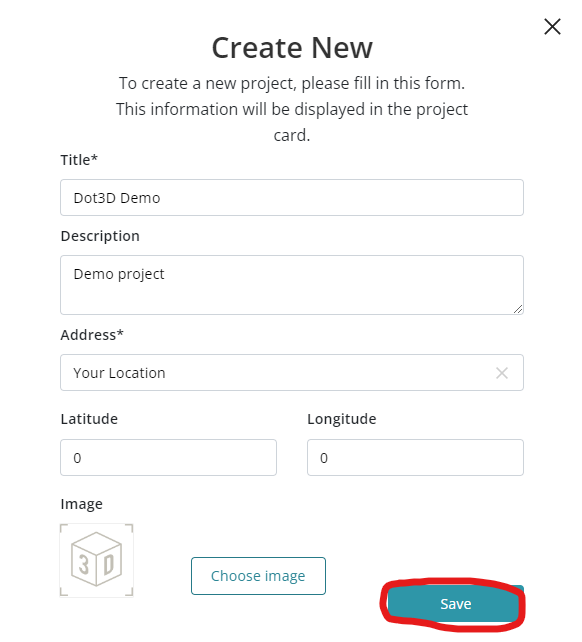

Step 2: Fill out the needed information about your scan project, and then press "Save"

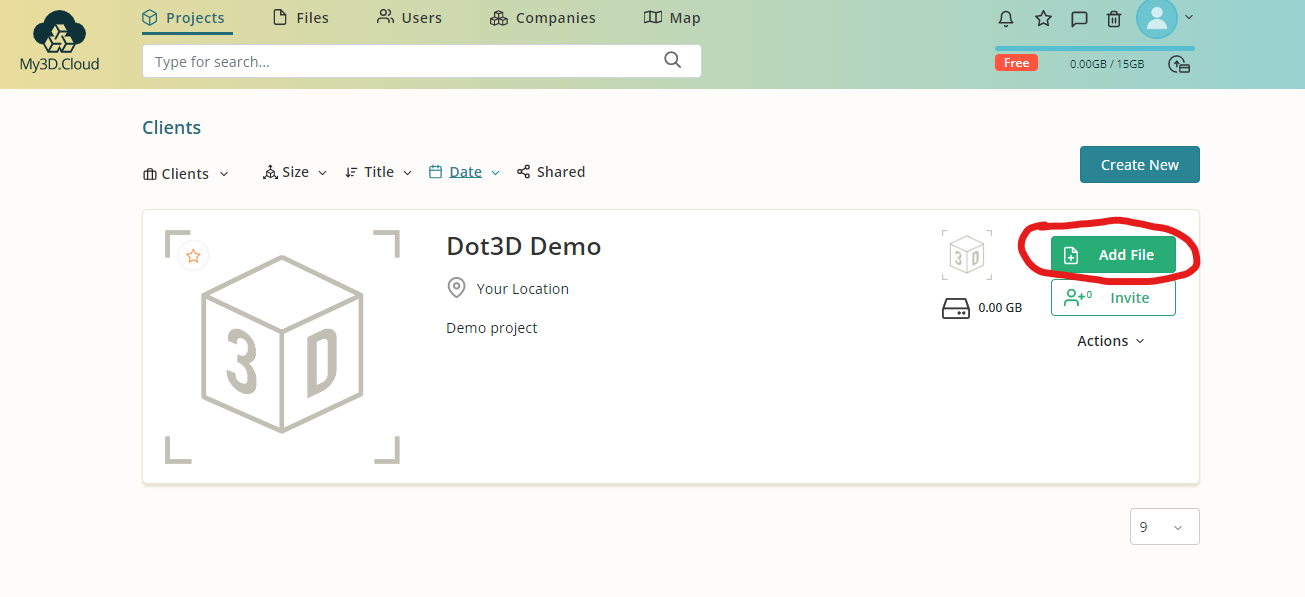

Step 3: Select "Add File" on your new project

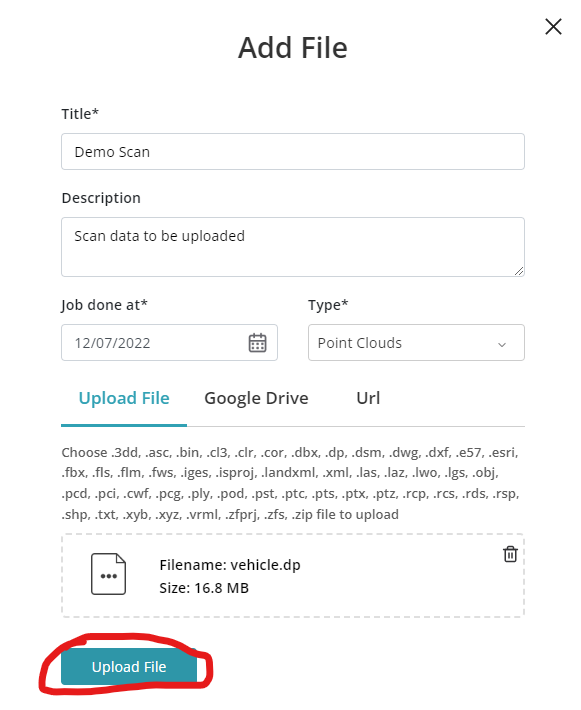

Step 4: Fill in information about your scan, Select "Point Clouds" from the drop down menu under "Type", and then click or drag your file into the "Drop files here to upload" box

Step 5: Select the dp file, or any supported file format of the data you wish to upload, and then press "Open"

Step 6: Press "Upload File"

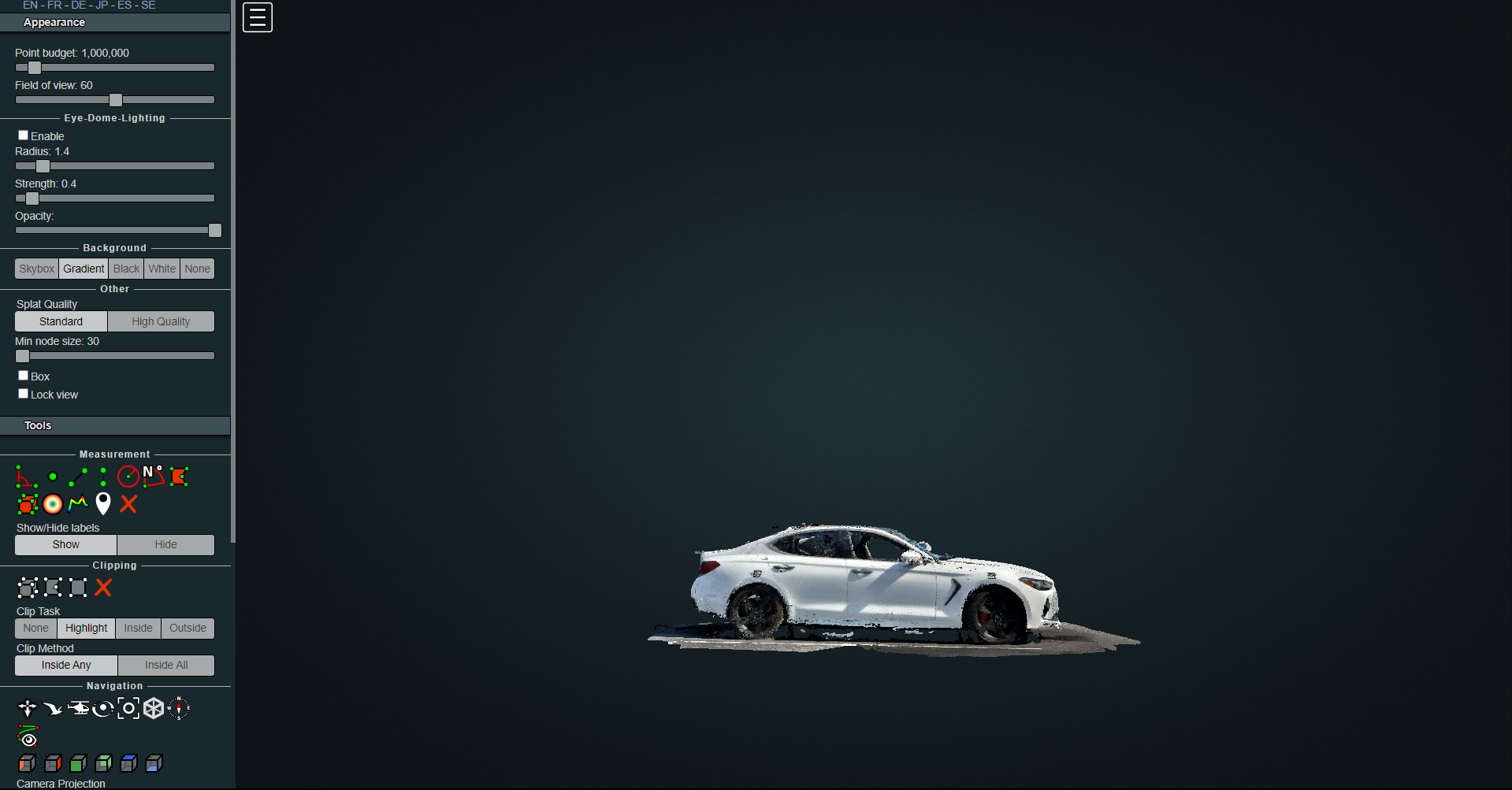

Step 7: You can find your uploaded files under your project. If the file format is supported, you can click the "Actions" button next to it, and hit "Preview" to see the scan
