How to Upload and View Dot3D Scans in Veesus Arena4D

How to Upload and View Dot3D Scans in Veesus Arena4D

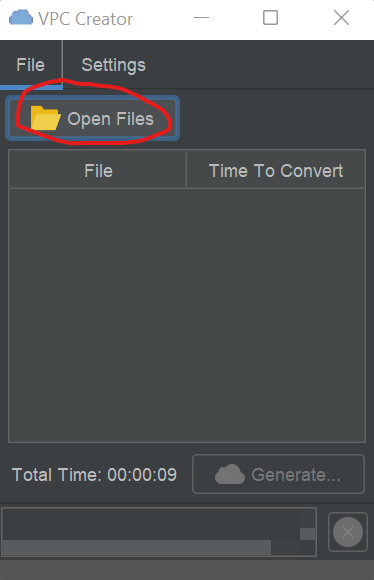

Step 1: Start by converting your scan to the VPC format using the VPC Creator software. Run it and select "Open Files"

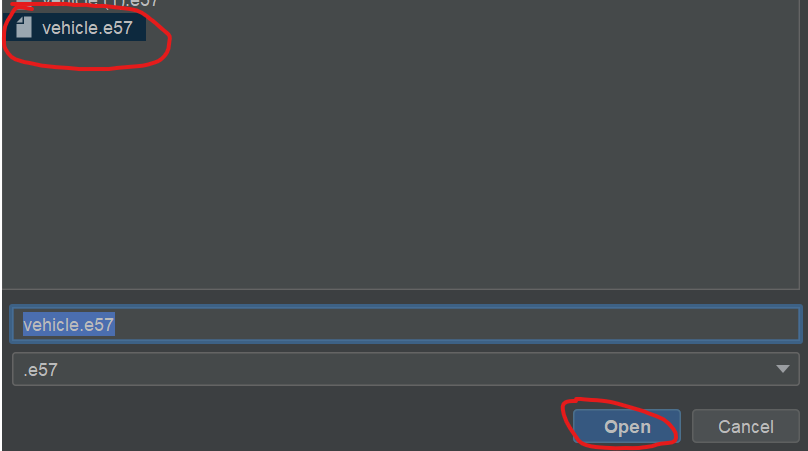

Step 2: Select the file you wish to use, then press "Open"


Step 3: Press "Generate"


Step 4: Select the directory you wish to store the new file in, and then select "Save"


Step 5: Head to Zappcha.com and login to continue. You now need to upload the new file you just created. Press the upload button in the upper right hand corner of the site.

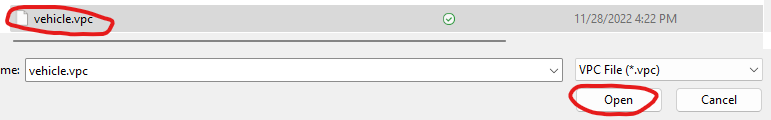

Step 6:  Select your new file and press "Open"

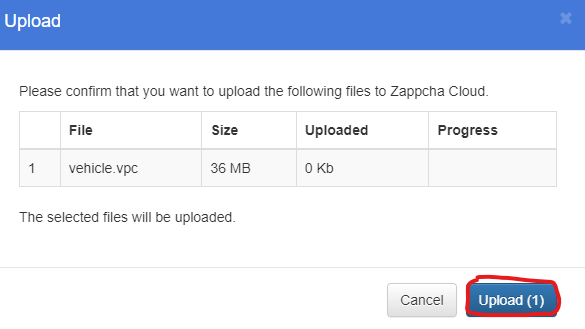

Step 7: Select "Upload" on the pop-up


Step 8: Head to Arena4D and select "File"> "Open File"> "Point Cloud"

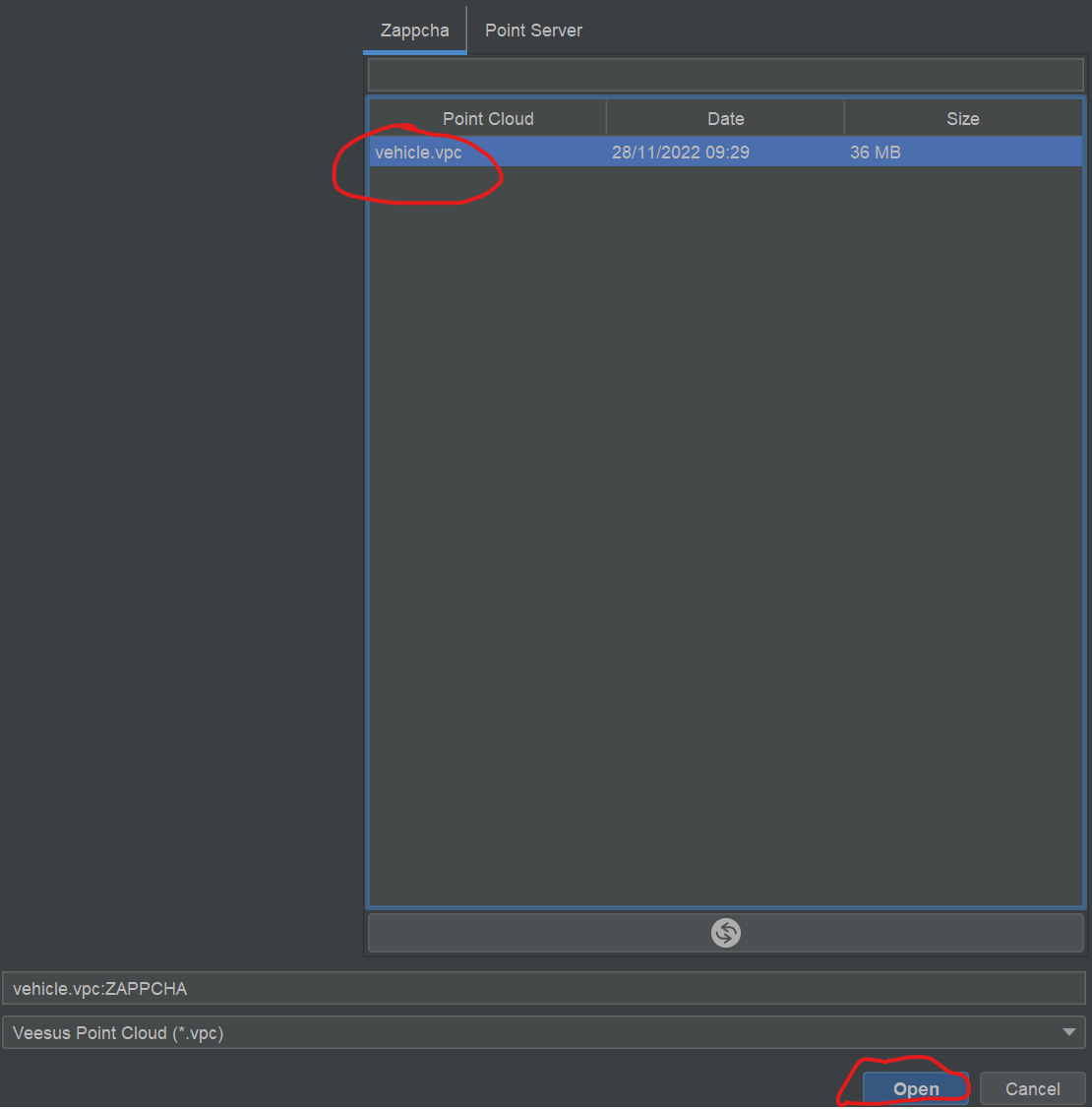

Step 9: Select your uploaded file and press "Open"

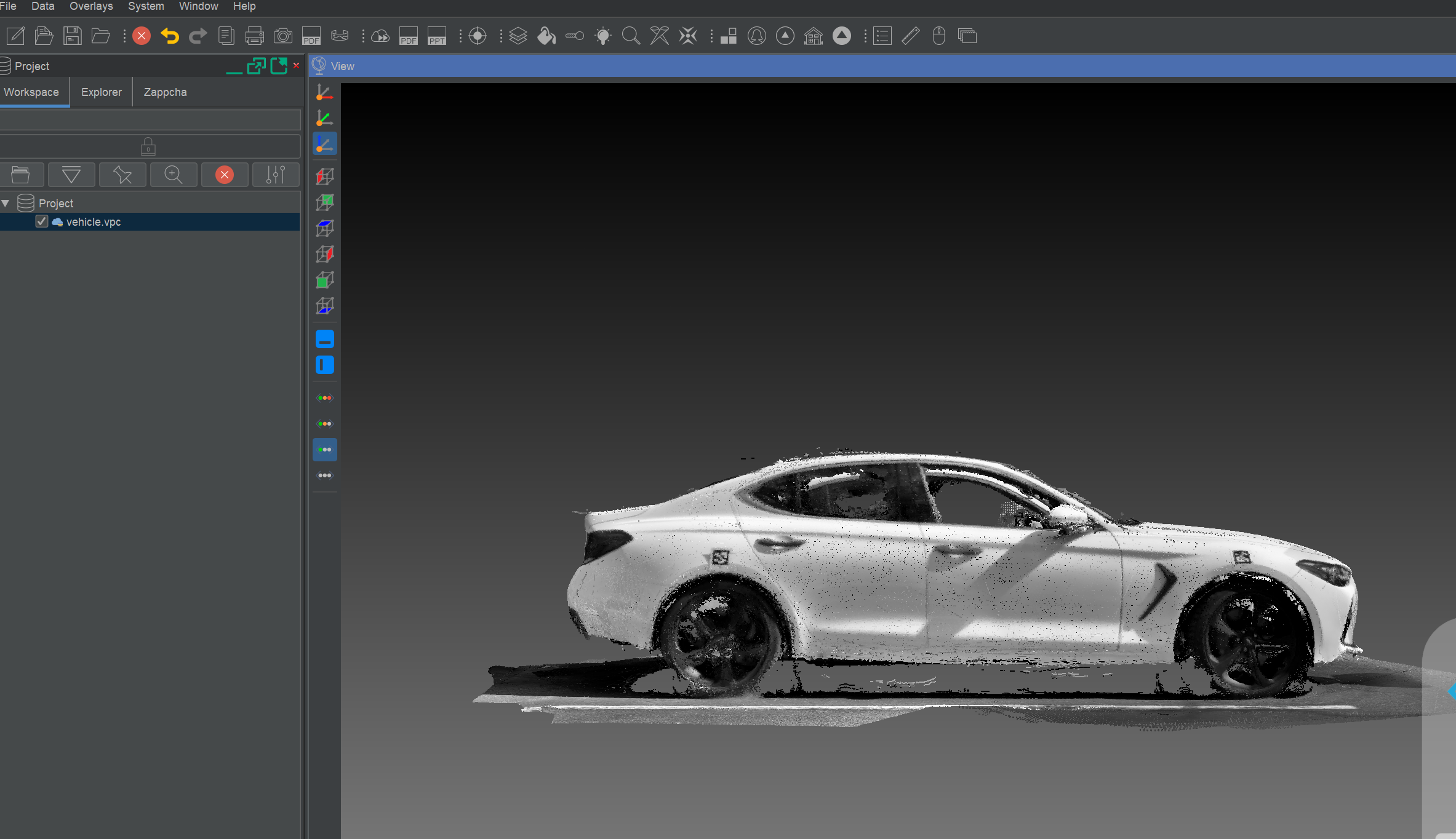

You should now be able to see your scan in Arena4D
