Import Dot3D scan data into FARO SCENE

How to import Dot3D scan data into FARO SCENE

FARO SCENE is software used for viewing, managing, and exporting 3D data. You may import Dot3D scans into it for further viewing after they are made.

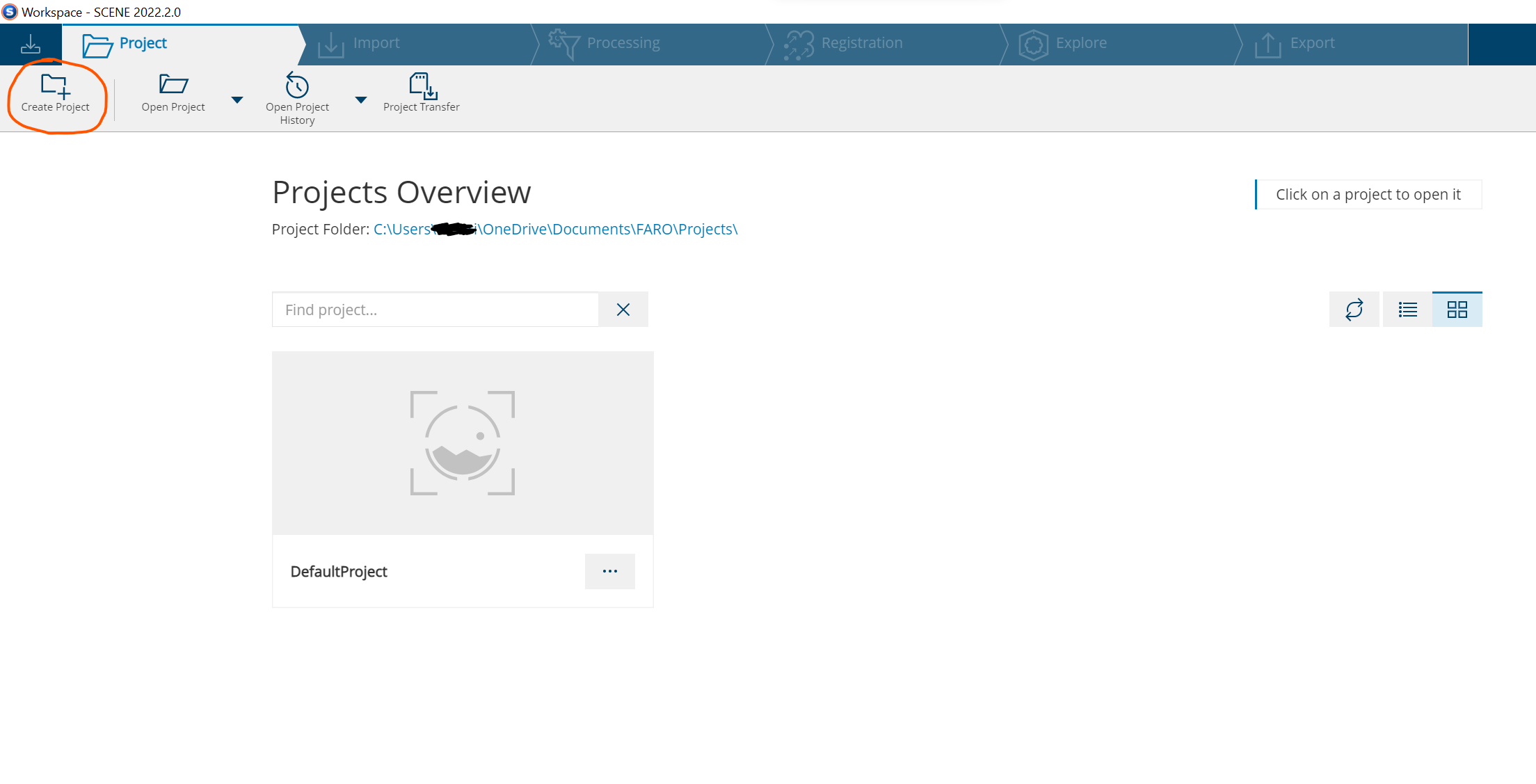

Step 1: In the top left hand corner, hit "Create Project"

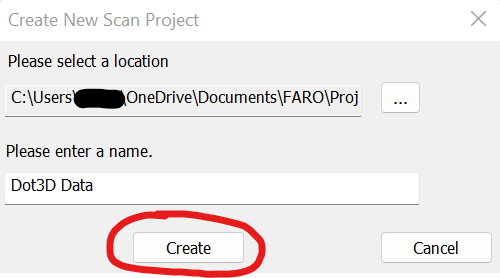

Step 2: Edit your projects location if you choose to, and give your project a name, then hit "Create"

Step 3: Prepare your e57 scan data for importing by following this tutorial

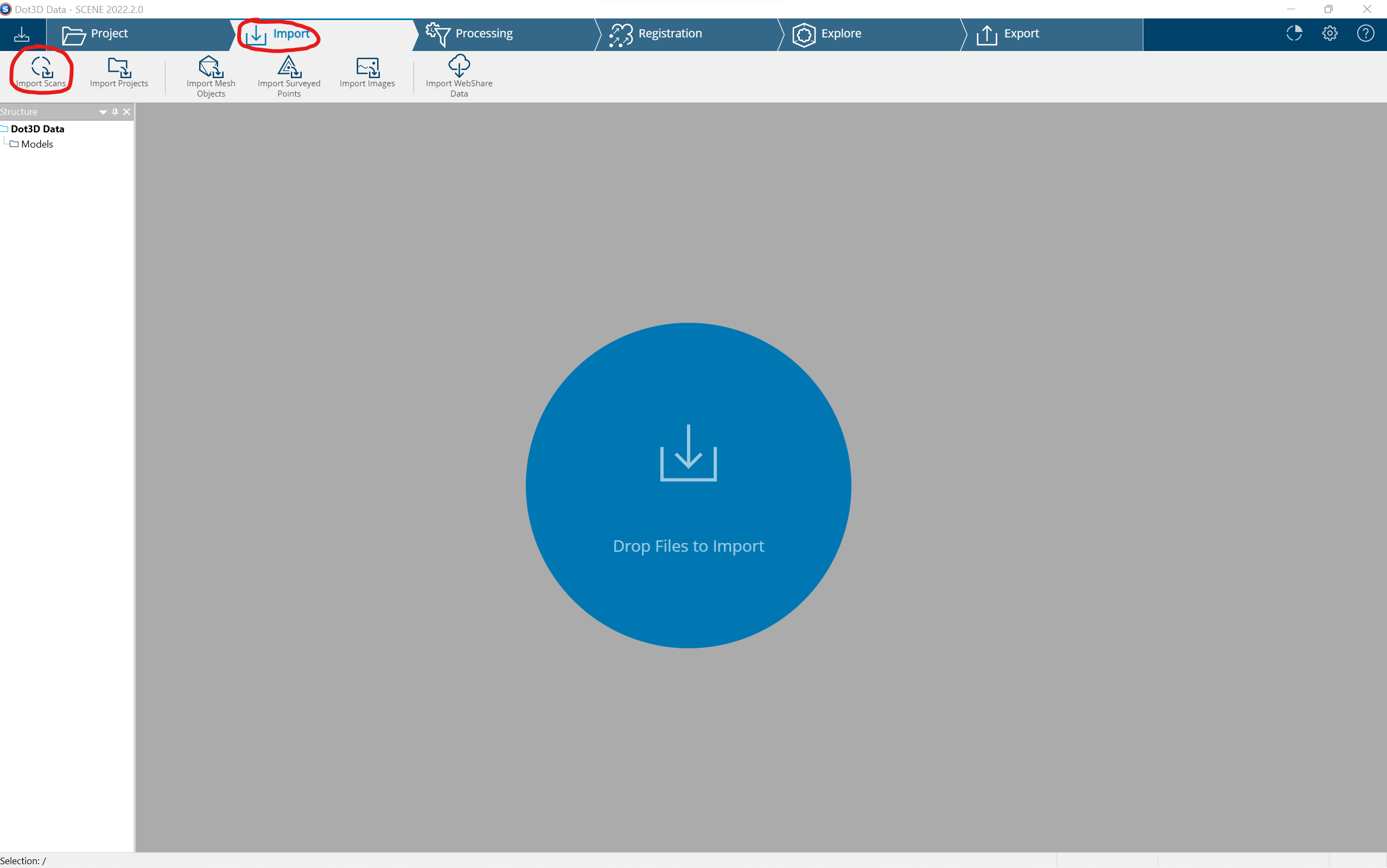

Step 4: In your new project, go to the "Import" tab and select "Import Scans" in the top left

Step 5: Select the scan data to be imported, and then press "Open"

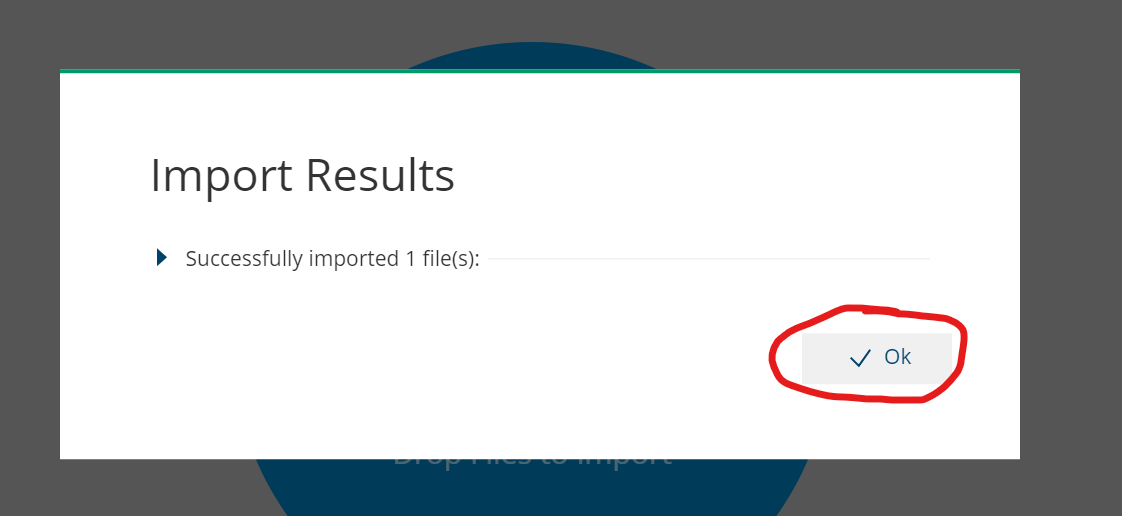

Step 6: Select "Ok" when your file is done being imported.

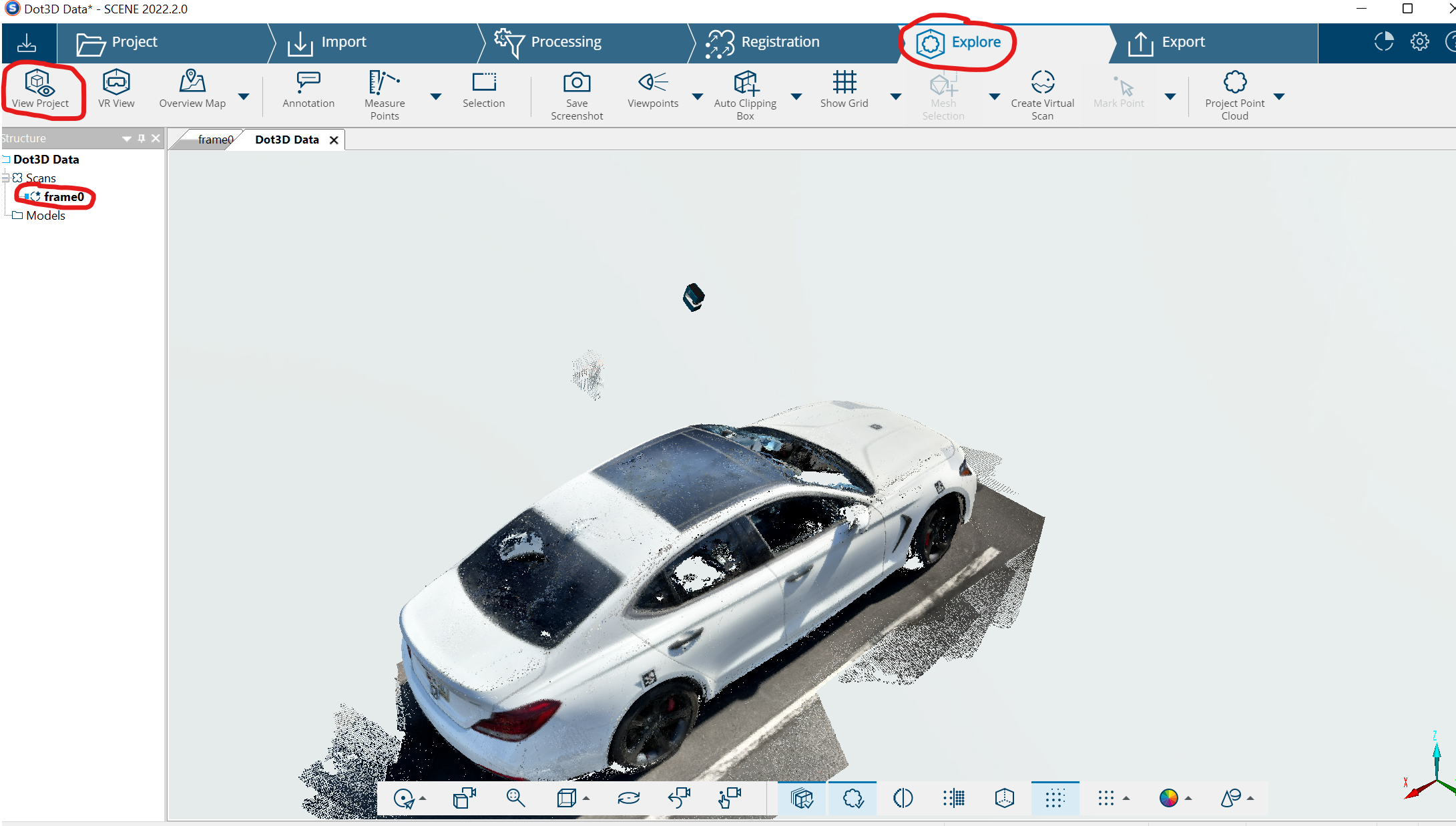

Step 7: Your scan data should now be successfully imported. To see it, you can go to the "Explore" tab, double click your scans frame, and then press "View Project"
